Installed around 3,500 feet of Oxygen Barrier Pex for the underfloor heating. This was clipped to 2″ foam boards.

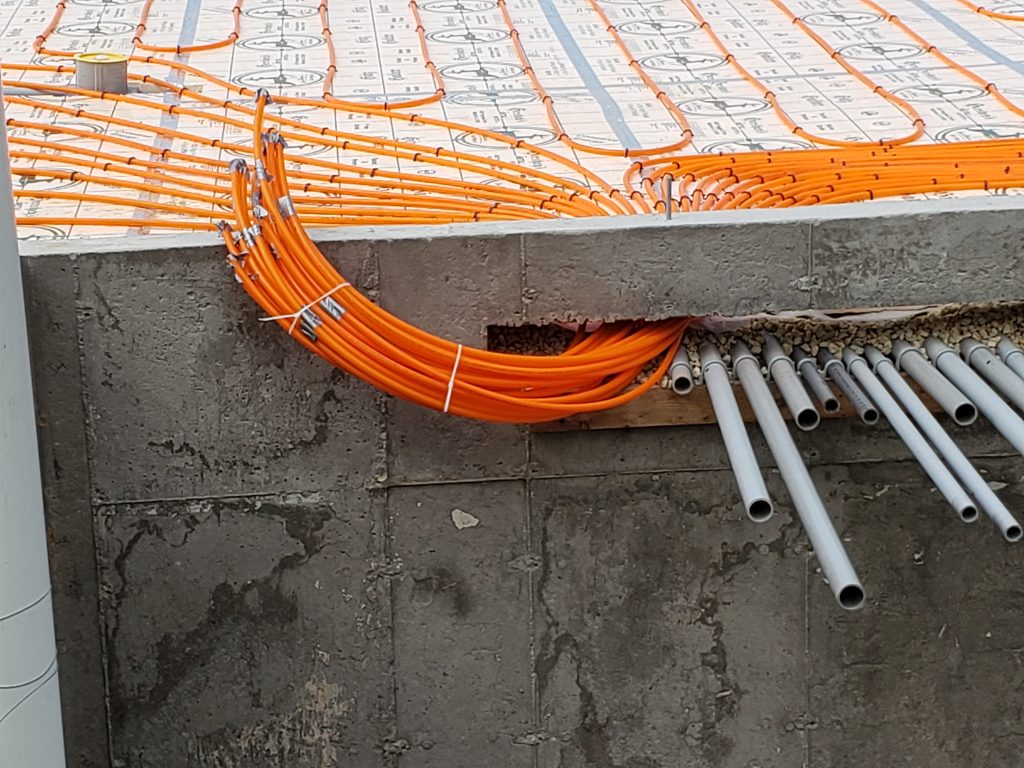

The pipes all terminate in teh small basement which is located beneath the mezzanine.

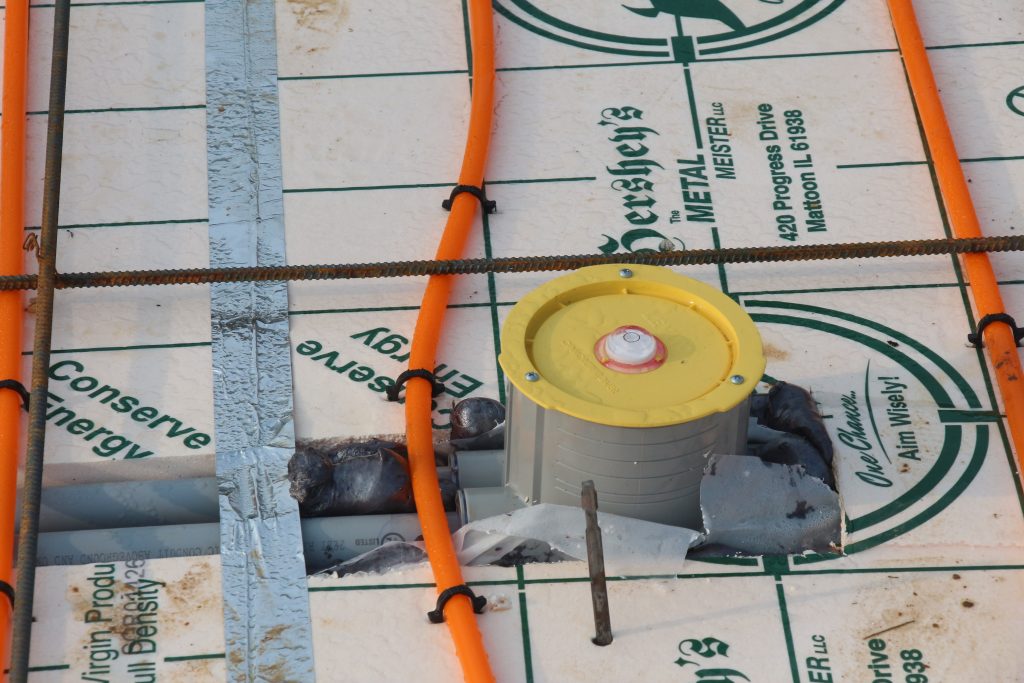

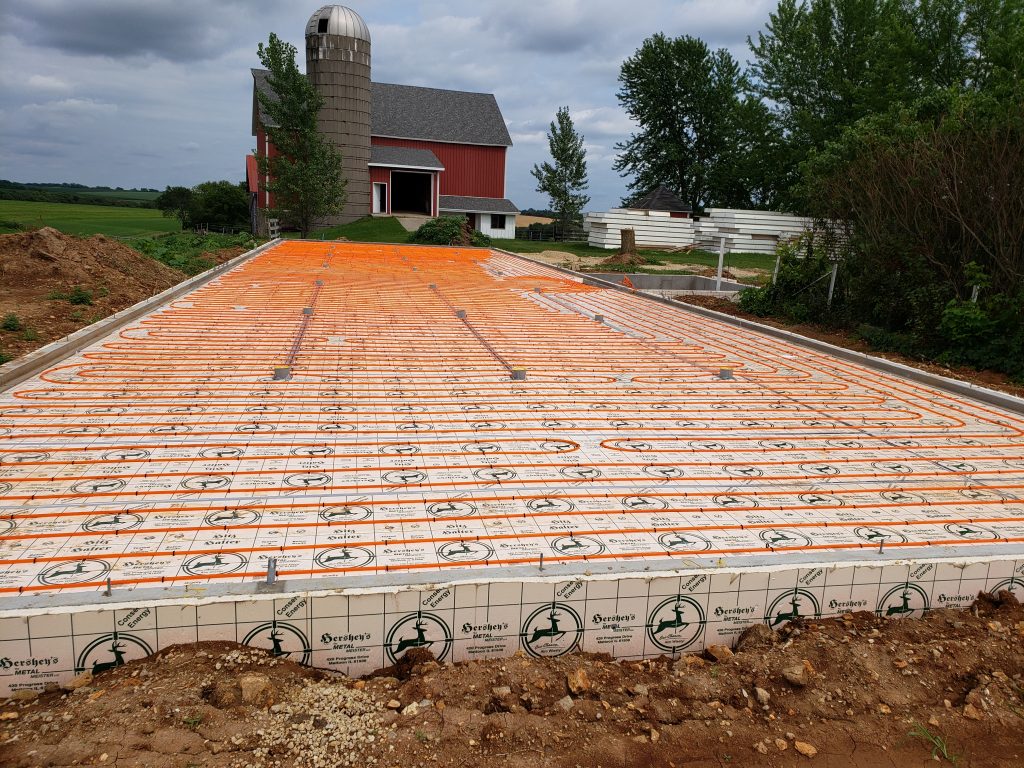

Fial layout showing Pex piping and electrical boxes.
